Web Service

Sym3 Operator Server / Integrator can host a web service that can be called by external application (e.g browser) and a script function that receives a callback when service is called

When simulation/server starts, Sym3 will host a web service for the specified port

Creating a Service

In Project Explorer, right click on Services > New Web Service.

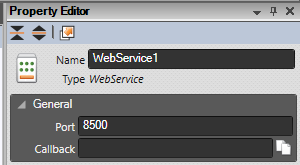

In the Property Editor, Set Port and Callback. The port must be unique for each Service.

Properties

When selected, each service is assigned a set of properties that can be maintained in the Property panel.

Name: Freeform name of the service. E.g. A2E

Service

Port: The port on which service listen to

Callback: Script function which will be excuted when service is called

A button has been added so the user can copy the javascript function and then paste it in Simulation Script. An example javascript function is as following:

Function properties



		// sender: name of caller
		// parameter:  string value containing all params and value sent through http request e.g. name1:value1,name2:value2
		function Test(sender,parameter) {


		}
